GP Suspension + Alloy Art Full Fork Assembly for Baggers

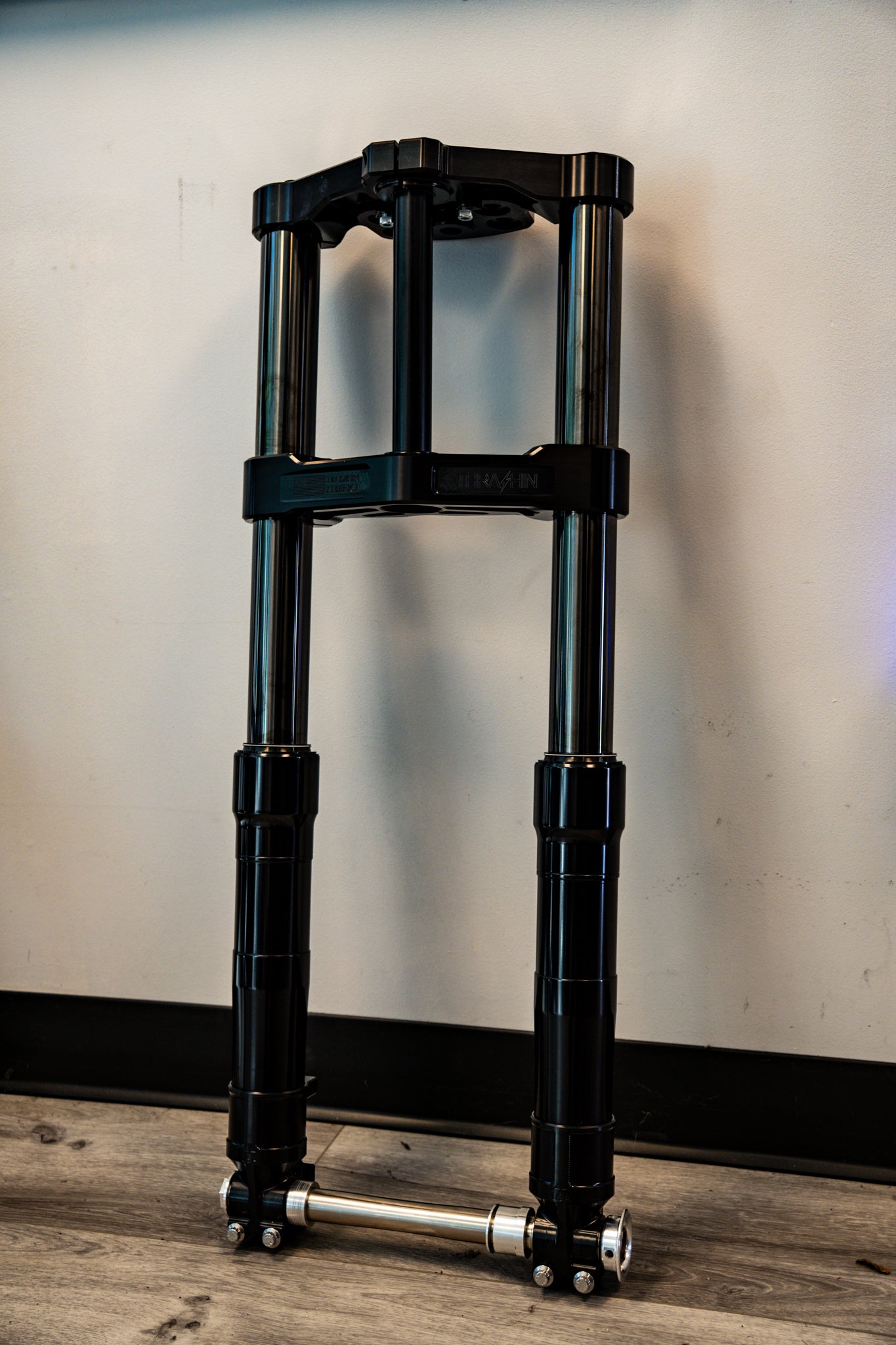

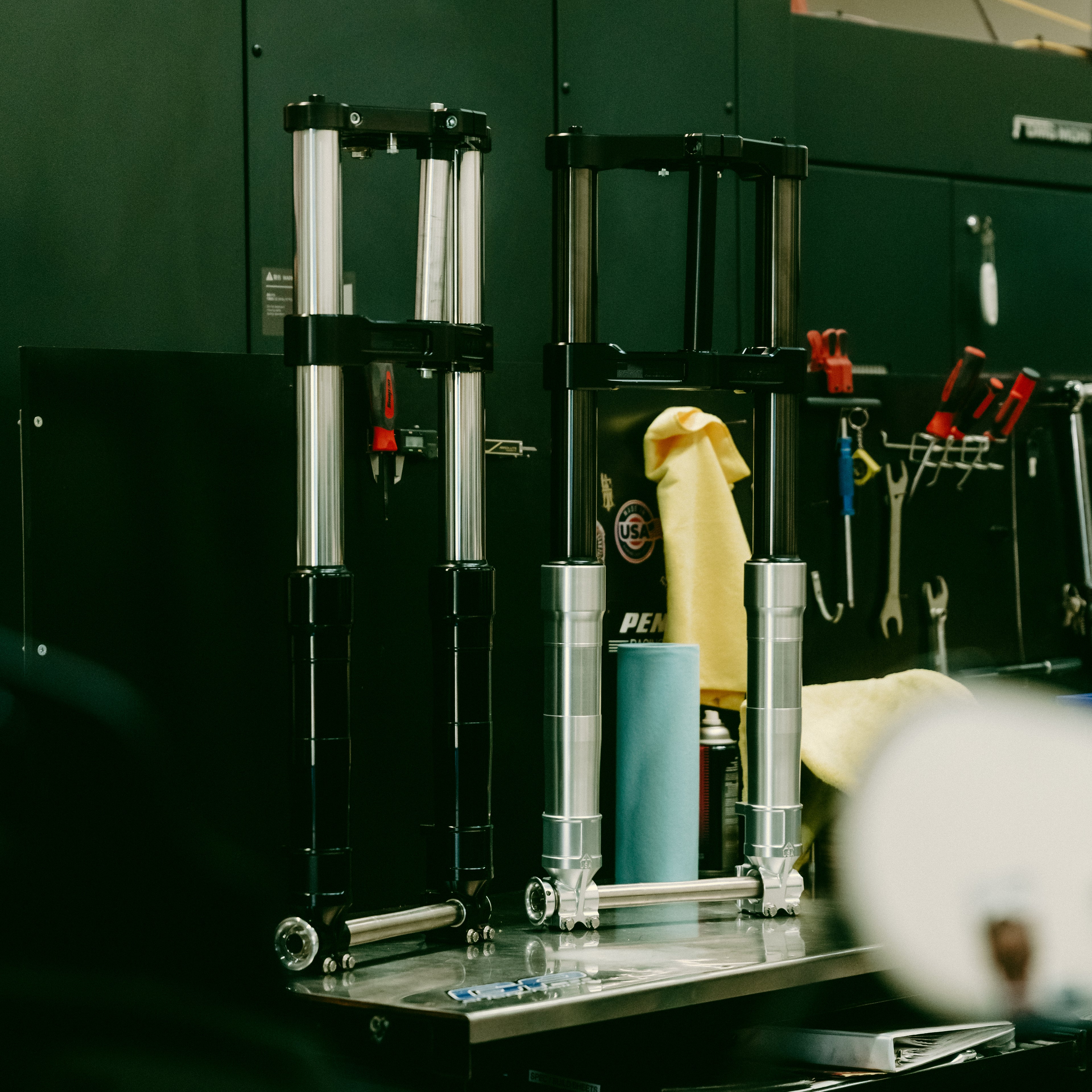

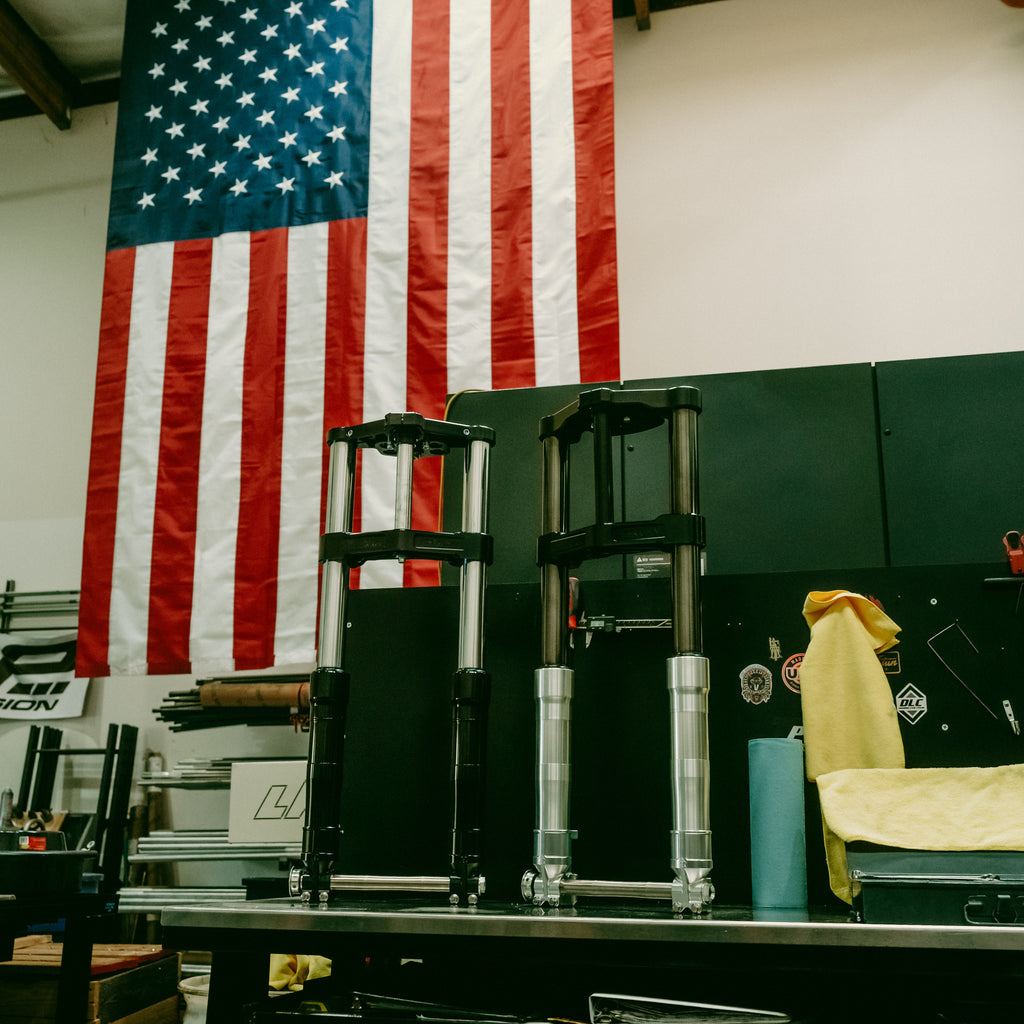

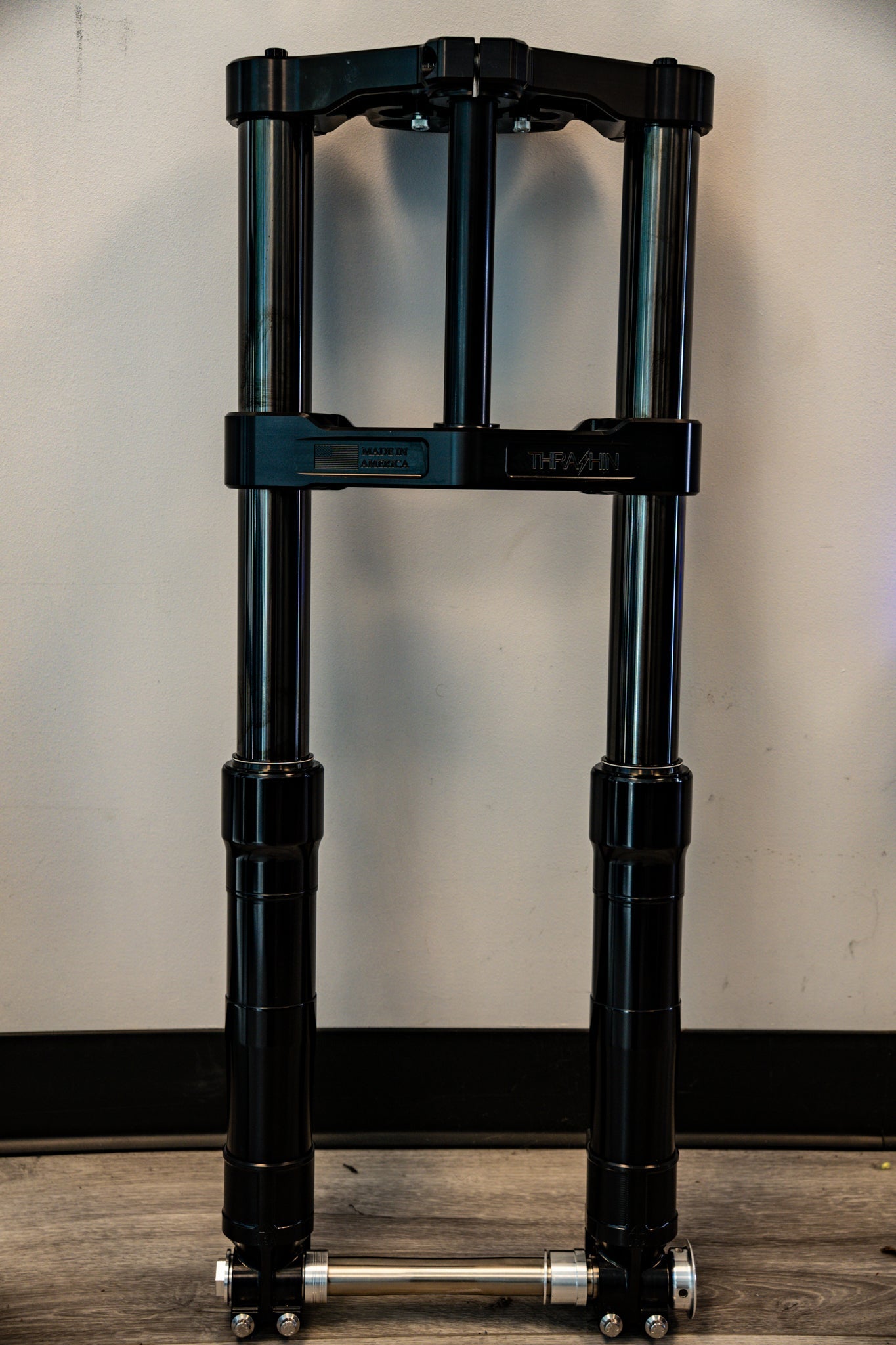

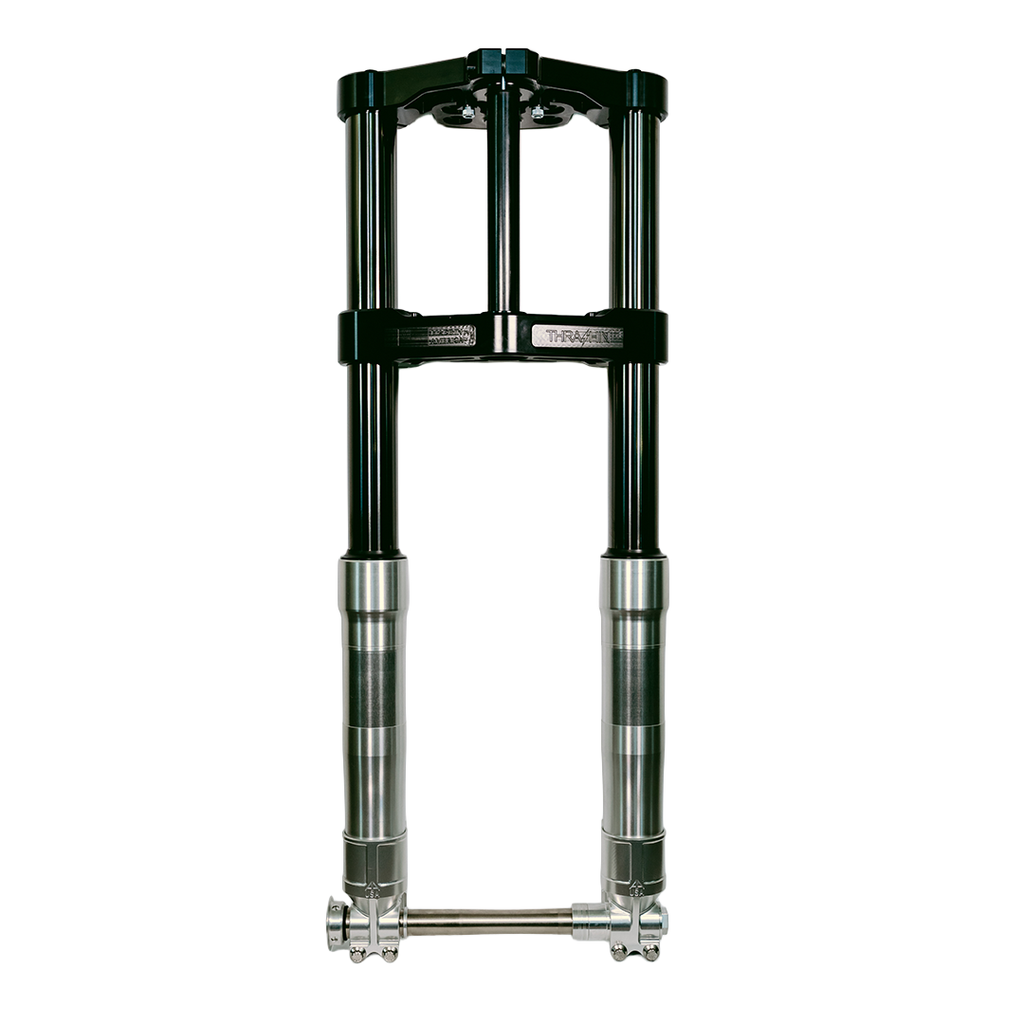

GP Suspension x Alloy Art Complete Fork Assembly - Ready to Install Bagger Front End

Transform your bagger's front end with the ultimate performance package: GP Suspension's proven 25mm cartridge kit comes fully assembled in Alloy Art's Next Gen 49mm Lower Legs ready to bolt on and ride.

Proven Racetrack Technology Meets Premium Hardware

Our advanced three-valve hydraulic system features velocity-optimized 25mm compression and rebound pistons, custom shimmed to your weight and riding preferences. Combined with Alloy Art's precision-machined billet aluminum lowers, you get exceptional confidence, traction, and a ride that puts a smile on your face.

GP Suspension Technology You Can Feel:

• Manufactured & Built entirely in Ventura, CA - American-made, never outsourced

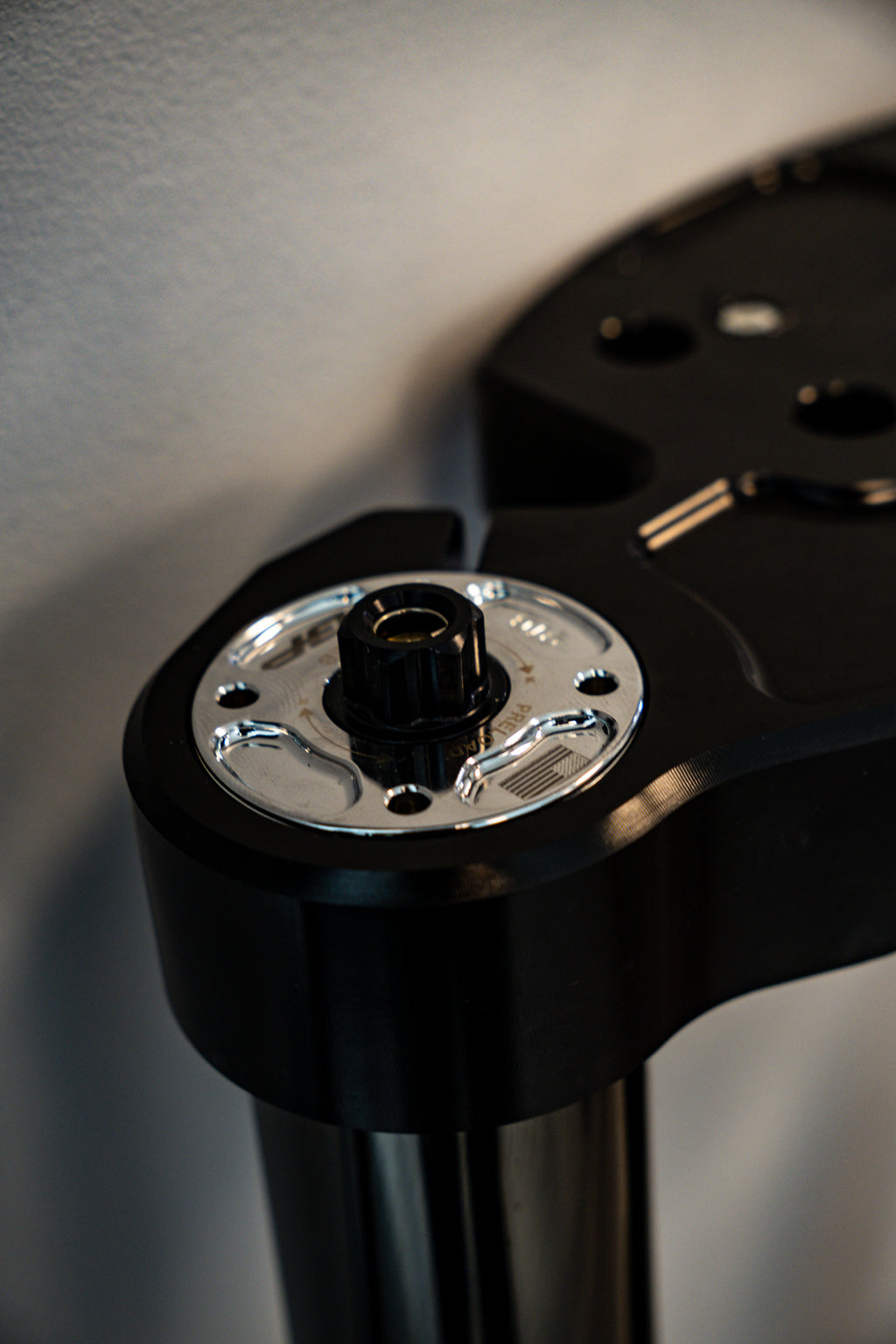

• Fully adjustable: preload, compression, and rebound adjustments on your new fork caps
• Increased stroke: 117mm to 122mm for enhanced compliance
• Integrated Topout Spring Technology eliminates harsh fork extension
• Advanced Bump Stop Technology provides progressive bottom-out control
• Superior fluid control and pressure management compared to conventional two-valve designs
• Real-world performance: soft response during low-speed compression for comfort, ramping up effectively for heavy impacts

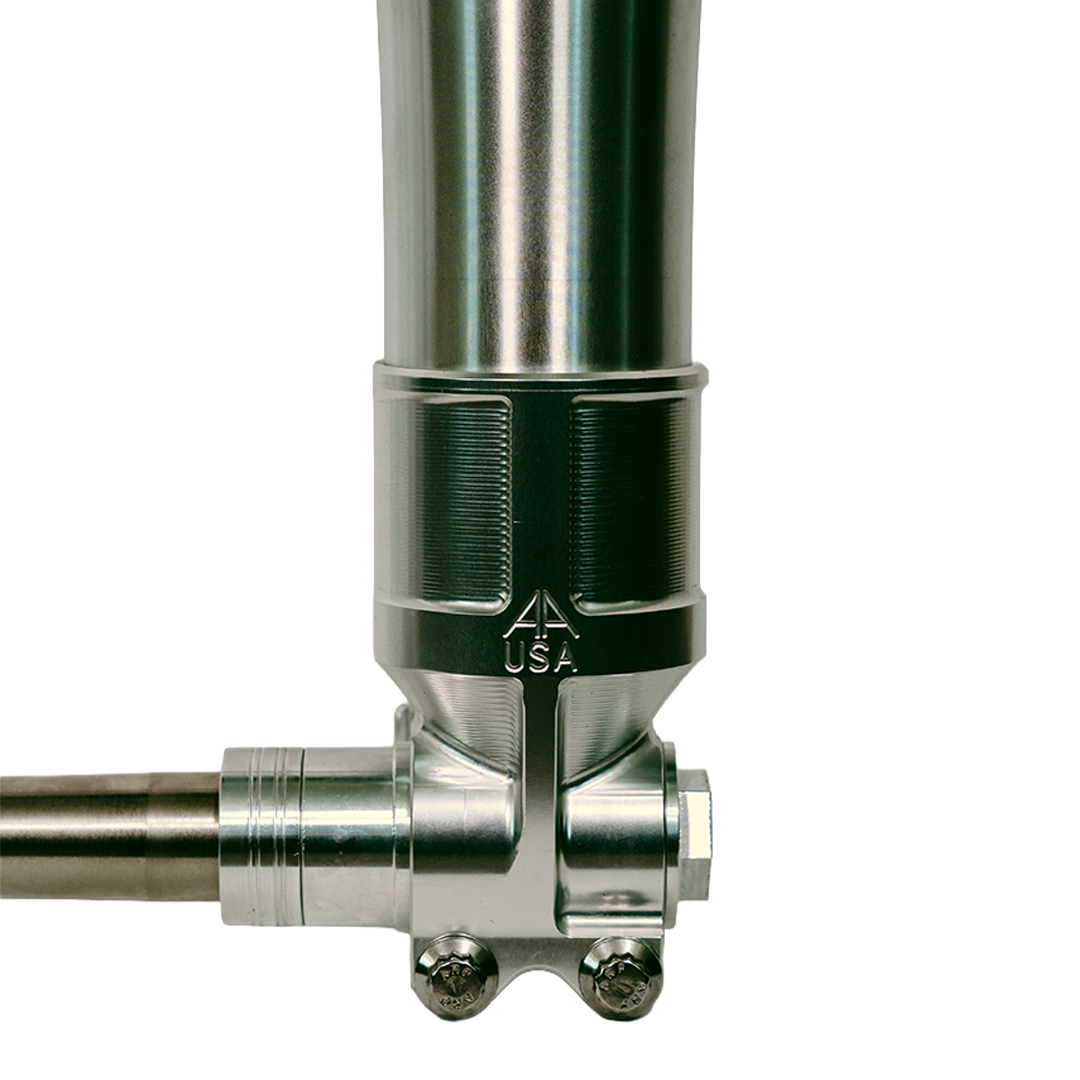

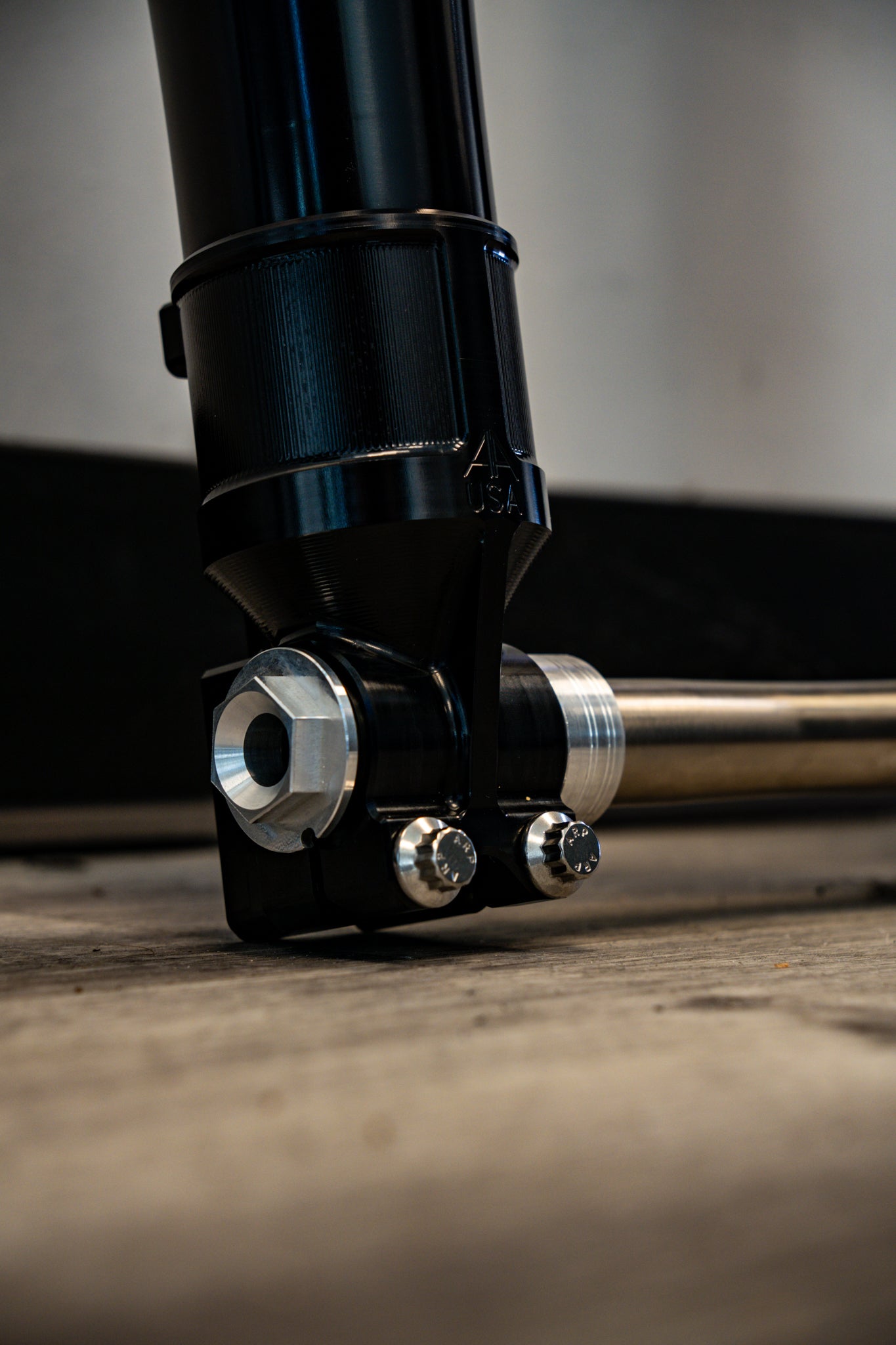

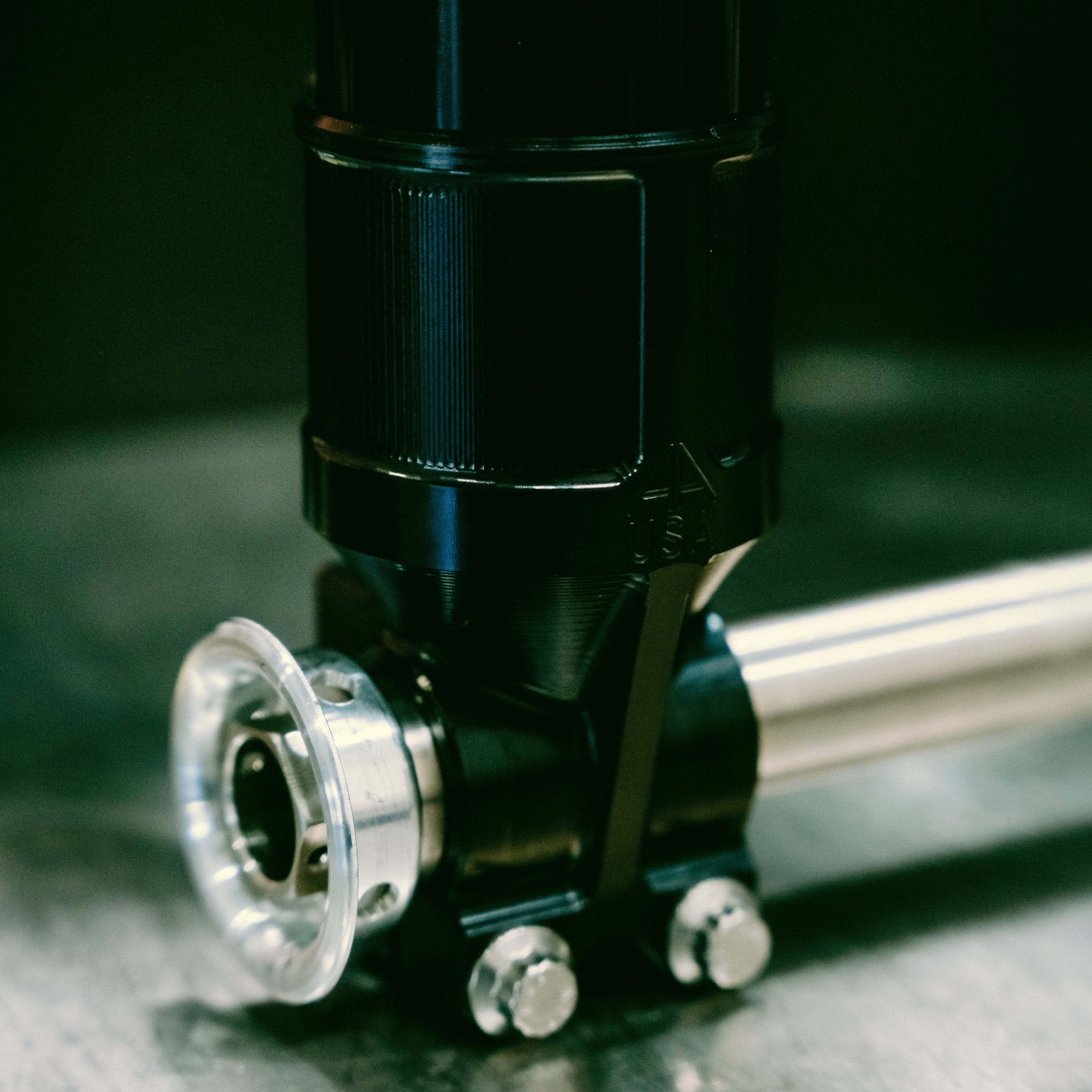

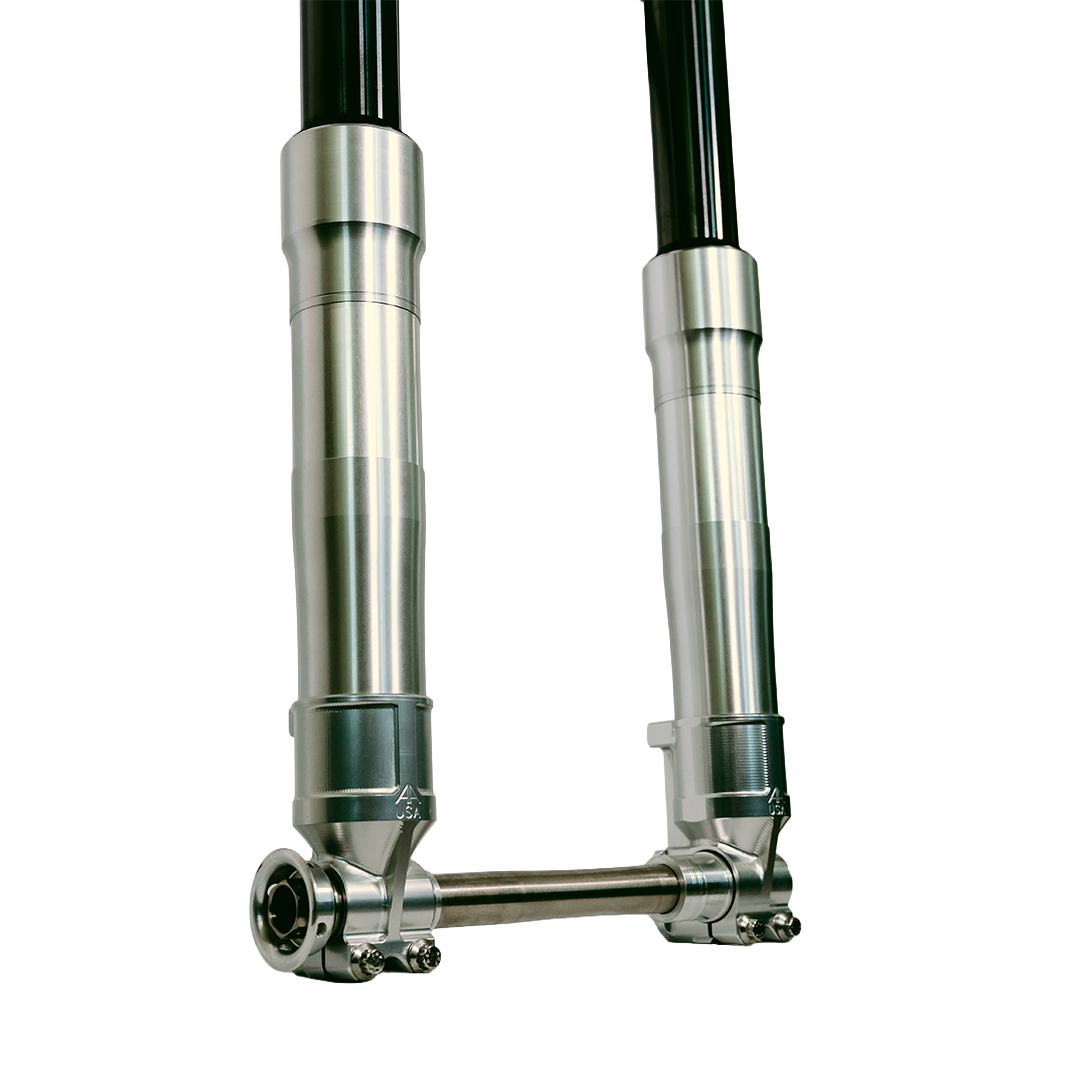

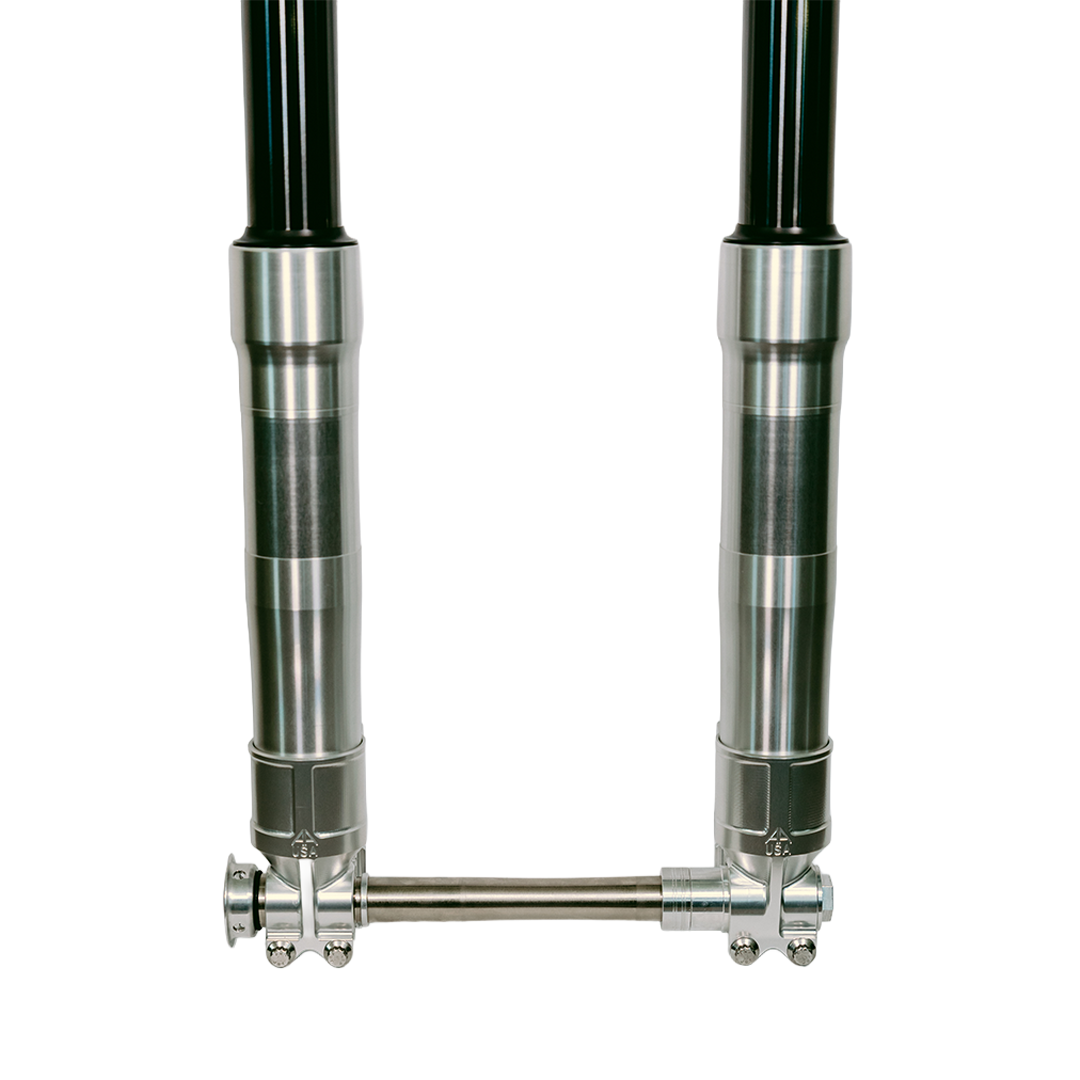

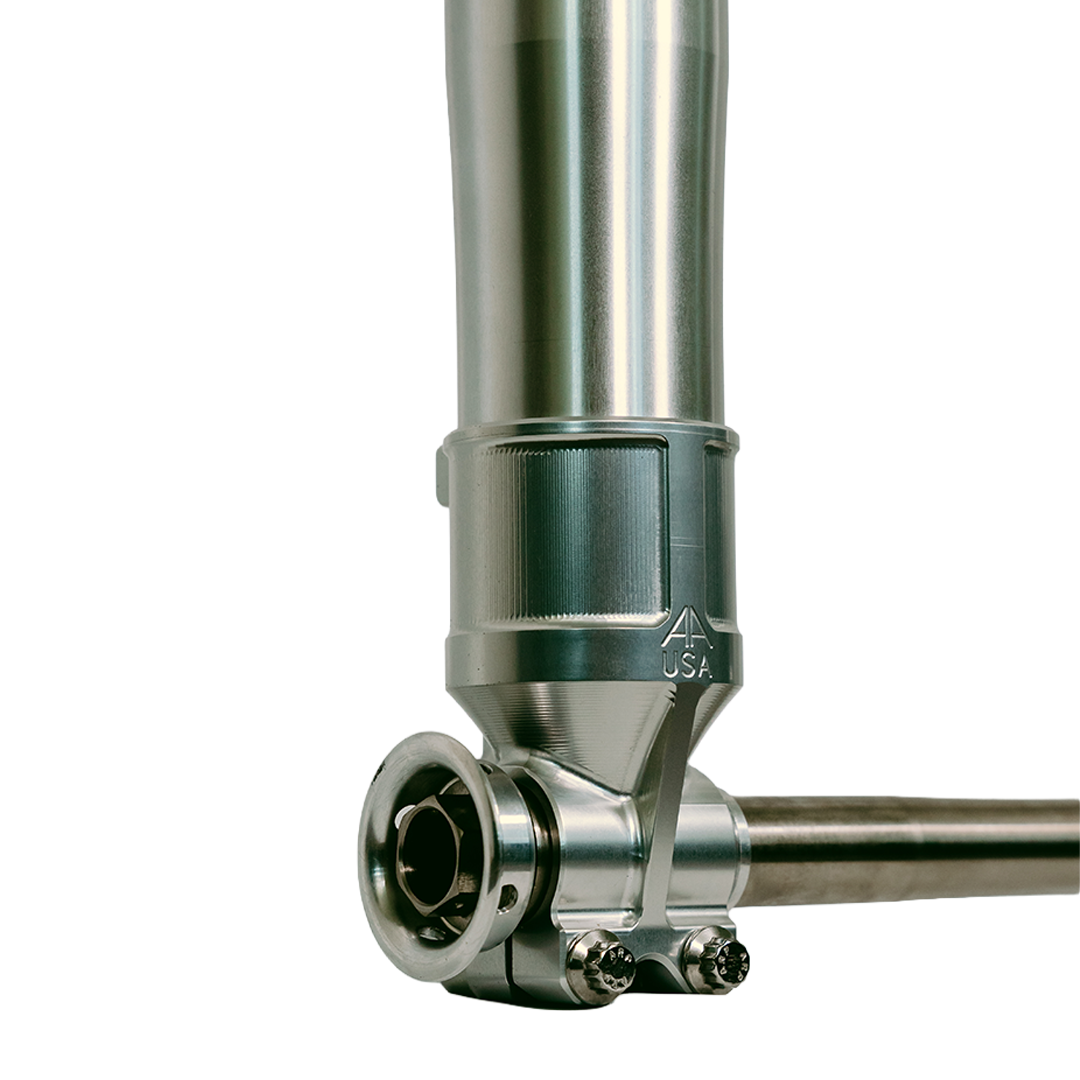

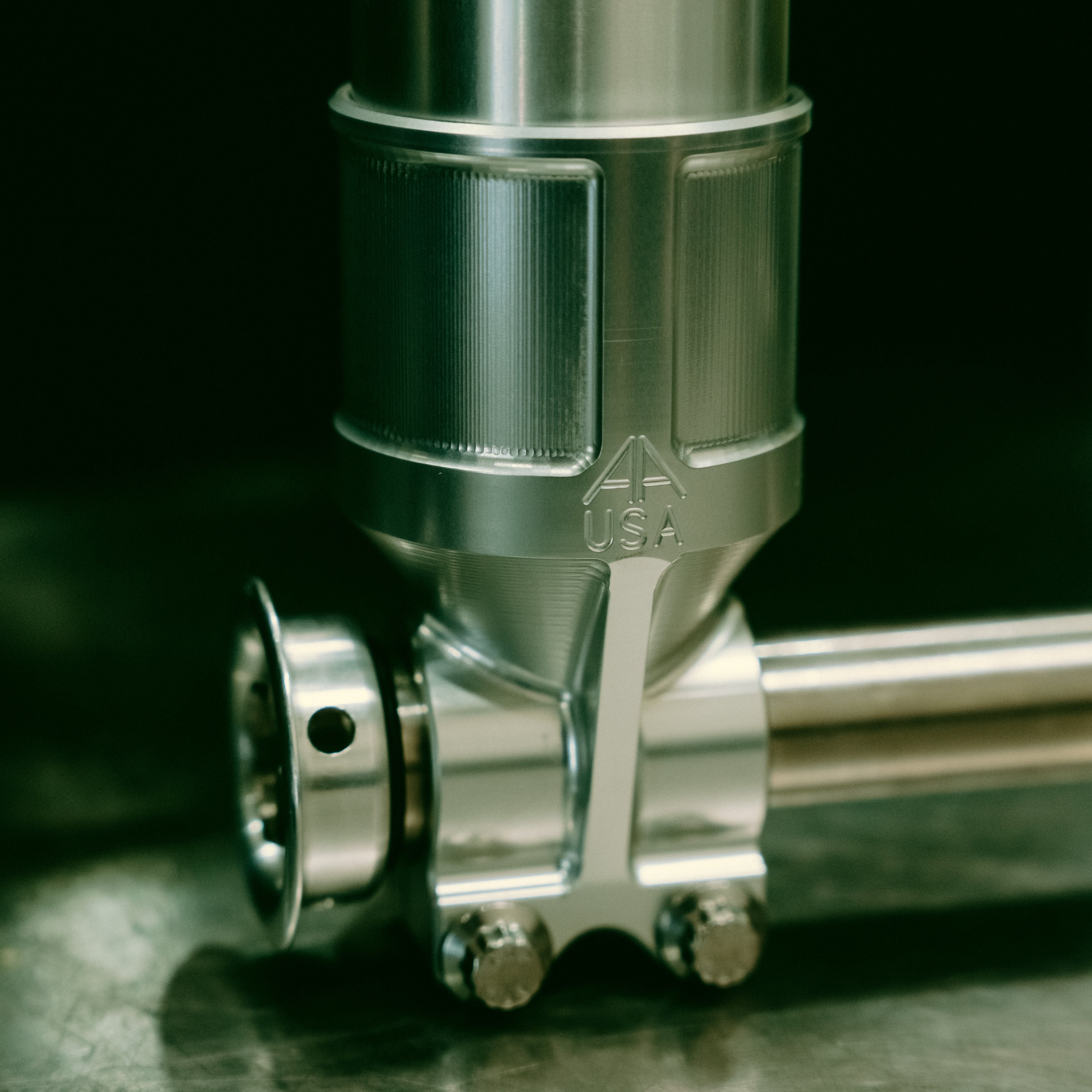

Alloy Art Next Gen 49mm Lower Legs - Form Meets Function:

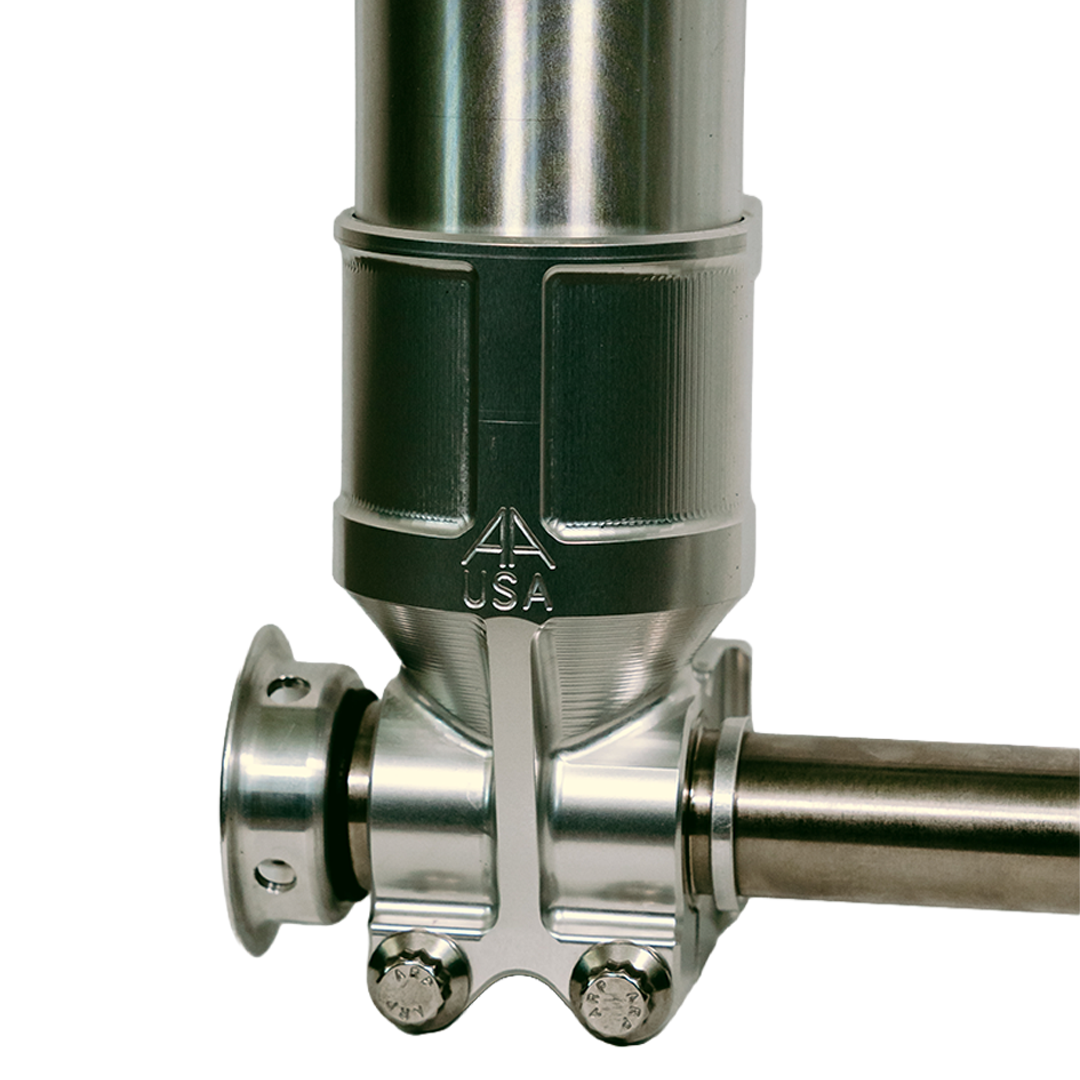

• Precision-machined billet aluminum construction
• Adjustable and removable fender mounts for perfect fender placement

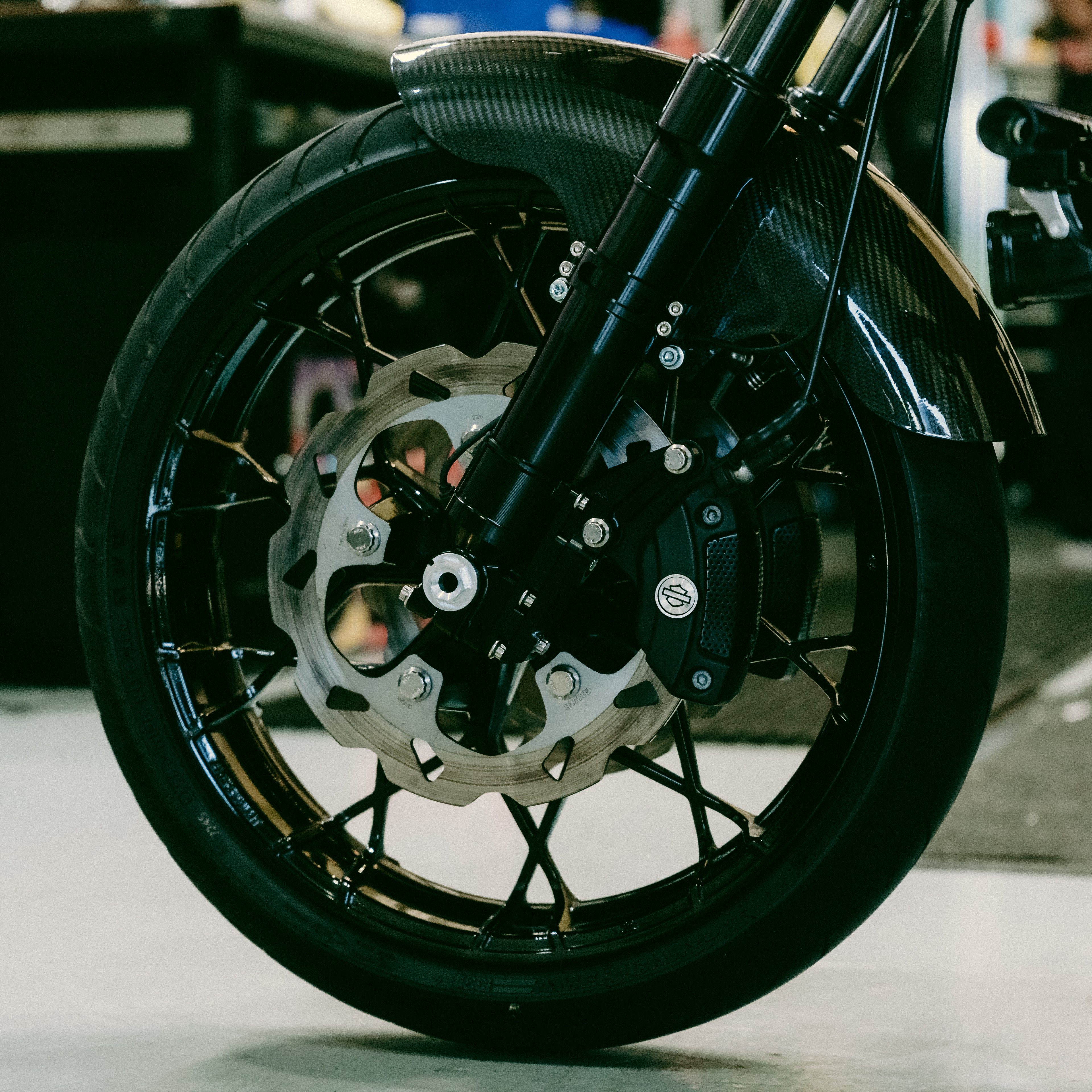

• Removable brake brackets allowing for single, dual, or no front brakes
• Available with Radial Mount caliper brackets (designed for radial calipers with 108mm mounting hole pattern)
• Available with Axial Mount (Ambidextrous Stock HD) brake mounts for OEM-style Dresser calipers

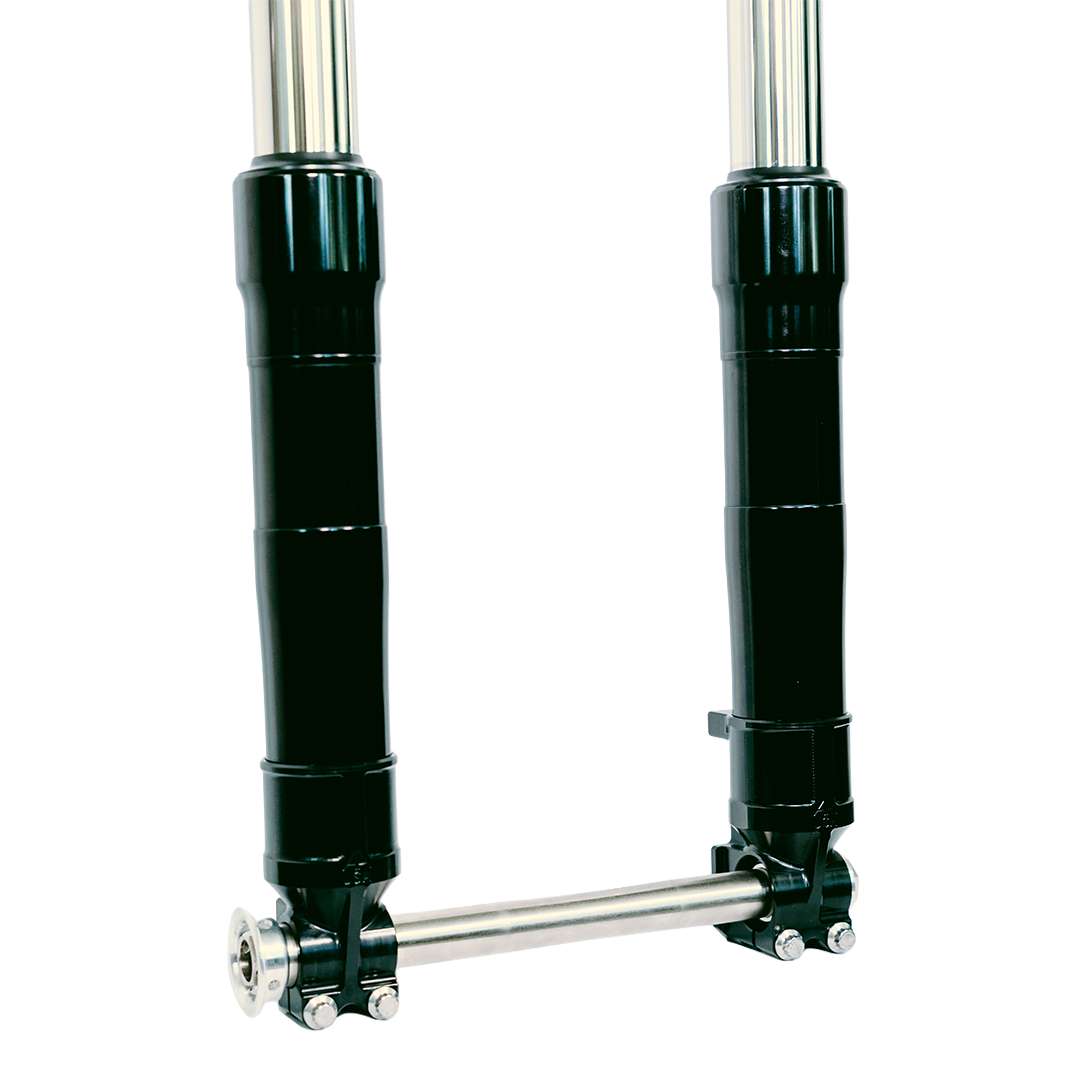

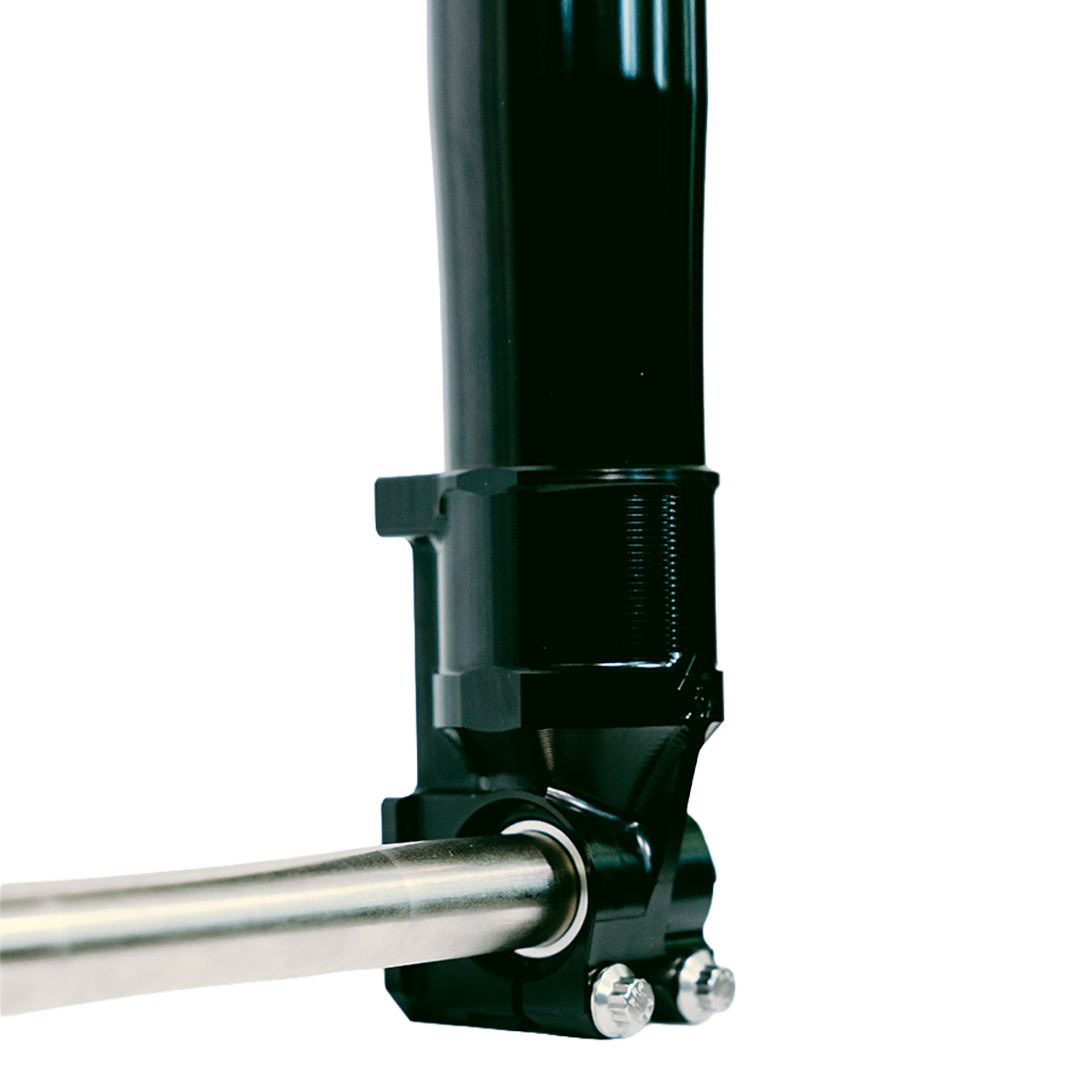

• Offered in Machined Hard Clear Ano or Machined Black Ano finish
• Includes cad-plated chromoly 25mm axle
• 100% Made in the USA

Three Performance Coating Options:

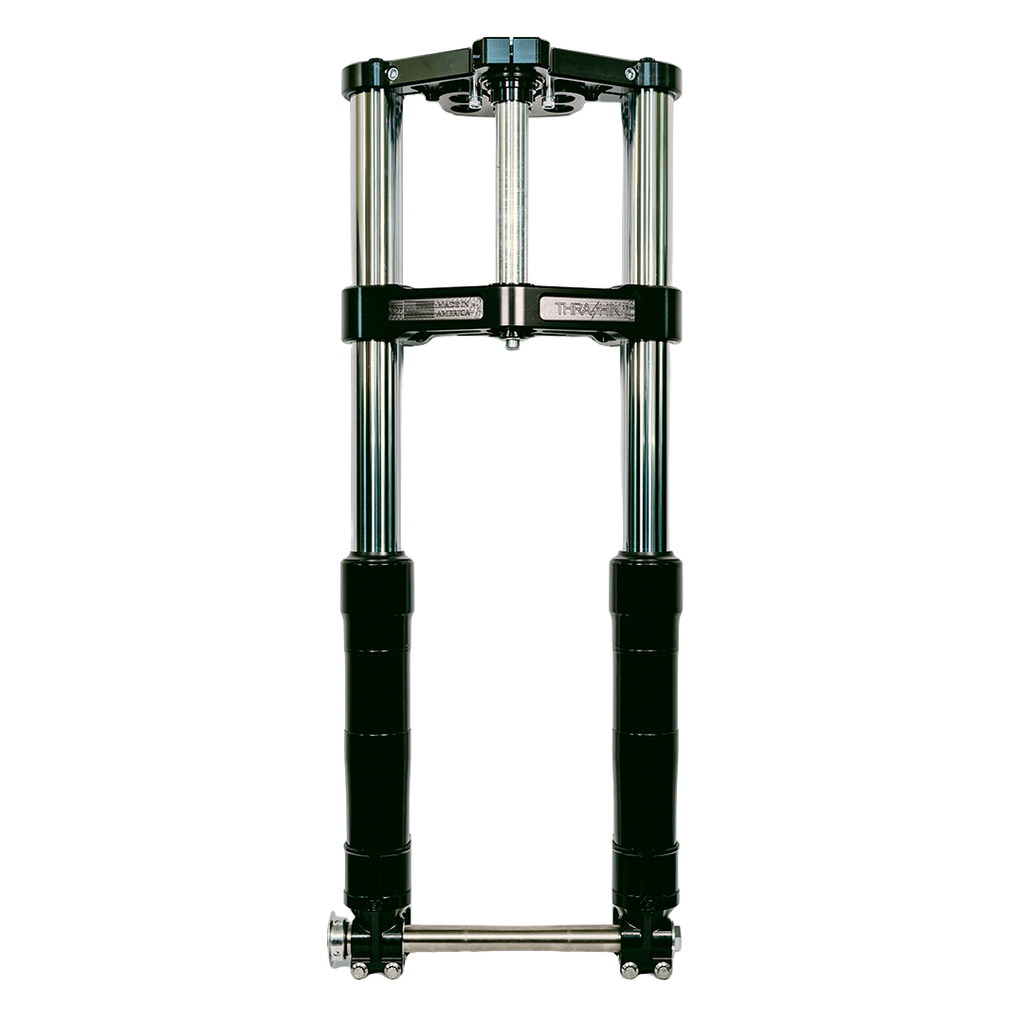

Chrome Tubes - Classic finish, ready for installation with OEM bottoming assembly removed

DLC (Diamond-Like Carbon) Coated Tubes - Ultimate performance coating featuring:

• Genuine CERTESS Carbon DLC coating
• Authentic diamond-like carbon technology from HEF Group, the global leader in advanced surface treatments
• Hardness: 2,500 to 6,000 HV - up to 20 times harder than chrome
• Ultra-Low Friction: Coefficient of friction as low as 0.10 in dry conditions, even lower when lubricated
• Dramatically reduces stiction and improves suspension response
• Extreme Durability: Diamond crystal structure with SP3 bonding creates a surface that will never wear out under normal use
• Advanced PACVD Process: Applied at only 170°C using plasma-enhanced chemical vapor deposition
• Multi-Layer System with sublayers (Cr, CrN, WC-C) for optimal adhesion and lifetime durability

Ti-Nitrate (Gold) Coated Tubes - Aerospace-grade performance featuring:

• Genuine Titanium Nitride (TiN) coating
• Authentic aerospace-grade PVD technology from HEF Group
• Extreme Hardness: 2,400 to 2,600 HV - harder than carbide and up to 4 times harder than chrome
• Low Friction Performance: Coefficient of friction of 0.3 on steel - reducing stiction by over 50%
• Superior Durability: Crystalline ceramic structure providing exceptional scratch and wear resistance

Alloy Art Next Gen 49mm Lower Legs - Form Meets Function:

• Precision-machined billet aluminum construction
• Adjustable and removable fender mounts for perfect fender placement
• Removable brake brackets allowing for single, dual, or no front brakes
• Available with Radial Mount caliper brackets (designed for radial calipers with 108mm mounting hole pattern)
• Available with Axial Mount (Ambidextrous Stock HD) brake mounts for OEM-style Dresser calipers
• Offered in Machined Hard Clear Ano or Machined Black Ano finish
• Includes cad-plated chromoly 25mm axle
• 100% Made in the USA

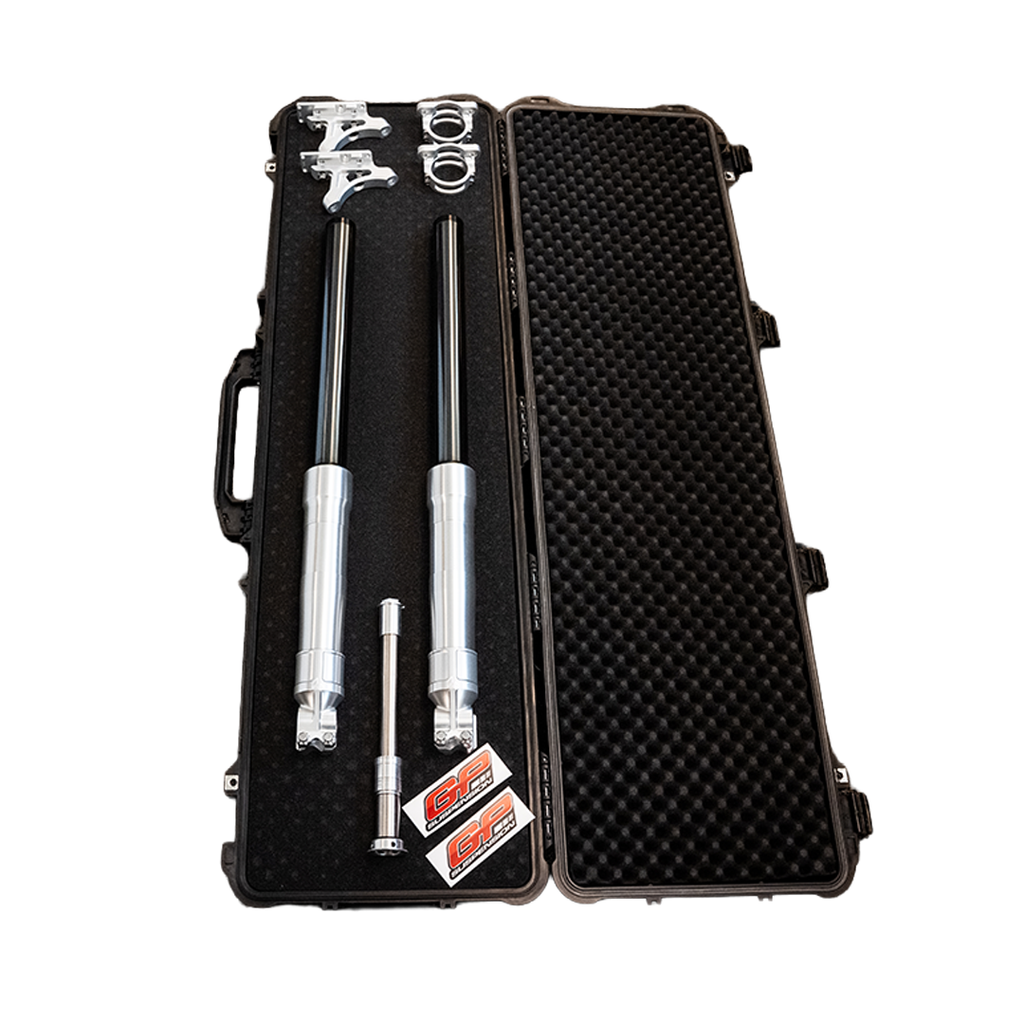

Complete Package Includes:

• GP Suspension 25mm cartridge kit fully assembled
• Alloy Art Next Gen 49mm Lower Legs
• Your choice of Chrome, DLC, or Ti-Nitrate coated fork tubes (pre-modified, OEM bottoming assembly removed)
• Custom spring set selected by our setup technician based on your riding information
• Fender mounts
• Cad-plated chromoly axle
• Choice of Radial or Axial brake mounting configuration

Experience more traction, more comfort, and precision-tuned suspension that adapts intelligently to every road condition. This complete assembly eliminates the hassle of sourcing components separately - just select your tube coating and brake mount configuration, and you're ready to transform your bagger's handling.

DEALERS PLEASE NOTE: THIS ITEM IS NOT AVAILABLE FOR RESALE
